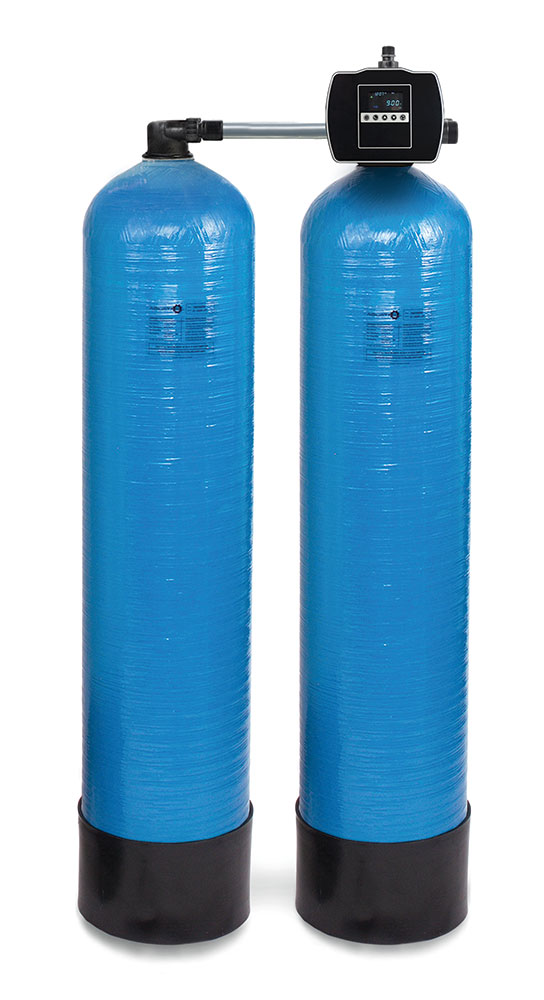

AQT-950SM-XT

Aquatrol Twin Alternating Softeners

FEATURES & BENEFITS

  • Simple easy to use design.
  • Injector and drain modules, flow controls, and brine modules are removable from the valve’s exterior.
  • Durable timer is designed with heavy-duty wide plastic gears.
  • AQT-56 controls are user-friendly and easy to program.
  • Non-corrosive, UV-resistant, Noryl valve body.
  • Choice of 7 or 12 day clock or demand regeneration with a mechanical meter.
  • Low annual power consumption; keeps the time and activates the valve mechanics with a single motor.

BT SERIES SPECIFICATIONS

Part NumberDescriptionTank Volume
galL
BT-1633-100SAquatrol 1633, 100L brine tank complete, Black, Square26.4100
BT-1833-100Aquatrol 1833, 100L brine tank complete, Black, Round26.4100
BT-1840-145Aquatrol 1840, 145L brine tank complete, Black,Round38.3145
BT-2450-350Aquatrol 350L brine tank complete, Natural92.4350
BT-3050-500Aquatrol 500L brine tank complete, Natural132.1500
BT-3948-1000Aquatrol 1000L brine tank complete, Natural264.11000
BT-4260-1500Aquatrol 1500L brine tank complete, Natural396.21500
BT-5060-2000Aquatrol 2000L brine tank complete, Natural528.32000

*Model BT-2450-350 and larger

CS SERIES SPECIFICATIONS

Part NumberDescriptionTank Volume
galL
CS-WB10Aquatrol 100L brine tank complete, White/Black26.4100

DATA SHEETS

AQT-950SM-XT SPECIFICATIONS

Part NumberTank SizeTotal Resin (ft³)Total Capacity (grain)Brine TankInjector
SS-950XT-1465B14" x 65"396,00018" x 40"3, White
SS-950XT-1665B16" x 65"4128,00024" x 50"3, White
SS-950XT-1865B18" x 65"5160,00024" x 50"4, Green
SS-950XT-2172B21" x 72"7224,00024" x 50"4, Green
SS-950XT-2472B24" x 72"10320,00024" x 50"5, Blue
SS-950XT-3072B30" x 72"15480,00030" x 72"5, Blue

*Model BT-2450-350 and larger

CS SERIES SPECIFICATIONS

Part NumberDescriptionTank Volume
galL
CS-WB10Aquatrol 100L brine tank complete, White/Black26.4100
