AQT-275-METER

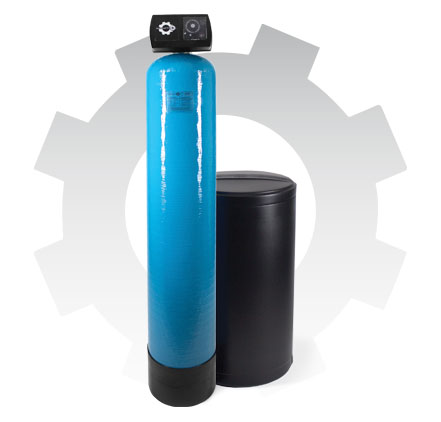

Aquatrol™ Softener Systems
Aquatrol™ Pressure Tanks offer a reliable and cost-effective alternative for all of your light residential to heavy-duty commercial applications. Aquatrol tanks are available in a variety of sizes ranging from 0713 to 6383 and all tanks are NSF/ANSI Standard 61 certified. Aquatrol proudly offers a 10 year warranty on tanks from 6″ – 13″ (5-year warranty on all tanks from 14″ – 63″).
Aquatrol Pressure Tanks provide outstanding performance and durability characteristics while giving you exceptional cost saving benefits. With Aquatrol there really is no need to go with a higher priced alternative.
For larger systems with the AQT-275 valve, the 1/2” brine valve is required. For more information, contact your supplier. BLFC, DLFC, injectors, controls, pistons and other internal parts have to be checked by the customer and/or installer to verify that they meet your engineering needs. For pistons for different applications consult with your supplier. Aquatrol provides this data for information purposes only, therefore it is not responsible for the misuse or wrong selection of internal parts by the customer and/or installer.
Valve: AQT-275ST / AQT-275SM

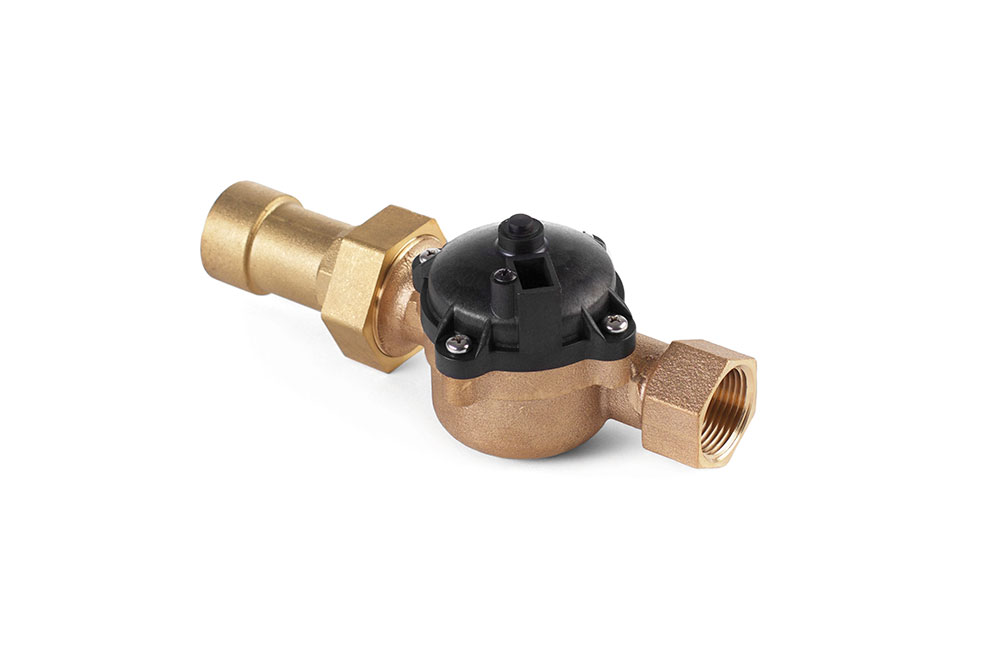

Meter: AQT-275-METER
Max. Flow Service: 33 gpm
Max. Flow Backwash: 25 gpm
Resin: MED-CAT100E
Diffuser: Aquatrol
Diffuser Inlet: 1.05″ OD (3/4″ SCH 40)
Control: Manual time and flow
Drain: 3/4″
Brine Injection Valve: 3/8″
Brine Line: 3/8″
Valve Base: 2 1/2″ 8 NPSM
• 1″ Valve
• 12 Day Time Control
• 5270 Gallon Flow Meter
• 5 Adjustable Cycles
• For light Commercial Applications
• Easy Maintenance
• Aquatrol Fiberglass Tanks
• 10-Year Warranty on 6″ – 13″ Tanks
• 5-Year Warranty on 14″ – 63″ Tanks
• 24V – 60Hz Electrical Connection
• Aquatrol Ready to Work Resin
• Original Aquatrol Spare Parts
| Part Number | Tank Size | Resin (ft³) | Brine Tank | Grain Capacity | Injector |
| SS-275ST-HW-1054 | 10" x 54" | 1.50 | 18" x 40" | 48,000 | 1 |
| SS-275ST-HW-1252 | 12" x 52" | 1.75 | 18" X 40" | 56,000 | 2 |
| SS-275ST-HW-1354 | 13" X 54" | 2.00 | 18" X 40" | 64,000 | 2 |
| SS-275ST-HW-1465 | 14" X 65" | 3.0 | 24" X 50" | 96,000 | 3 |
| SS-275ST-HW-1665 | 16" x 65" | 4.0 | 24" x 50" | 128,000 | 4 |
| SS-275ST-HW-1865 | 18" x 65" | 5 | 24" x 50" | 160,000 | 4 |
Capacities have been calculated based on a capacity of 32,000 grains per cubic foot. It is the responsibility of the customer, engineer and/or installer to verify if this capacity is the most suitable or to use a protection factor.
| Part Number | Tank Size | Resin (ft³) | Brine Tank | Grain Capacity | Injector |
| SS-275ST-HW-1054 | 10" x 54" | 1.50 | 18" x 40" | 48,000 | 1 |
| SS-275ST-HW-1252 | 12" x 52" | 1.75 | 18" X 40" | 56,000 | 2 |
| SS-275ST-HW-1354 | 13" X 54" | 2.00 | 18" X 40" | 64,000 | 2 |
| SS-275ST-HW-1465 | 14" X 65" | 3.0 | 24" X 50" | 96,000 | 3 |
| SS-275ST-HW-1665 | 16" x 65" | 4.0 | 24" x 50" | 128,000 | 4 |
| SS-275ST-HW-1865 | 18" x 65" | 5 | 24" x 50" | 160,000 | 4 |
Capacities have been calculated based on a capacity of 32,000 grains per cubic foot. It is the responsibility of the customer, engineer and/or installer to verify if this capacity is the most suitable or to use a protection factor.
