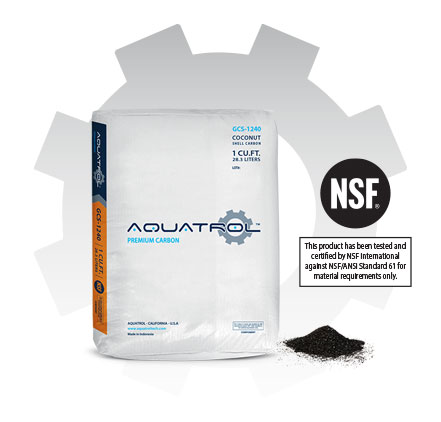

MED-GCS SERIES

Coconut Shell Granular Activated Carbon

Aquatrol™ MED-GCS Series Coconut Shell Granular Activated Carbon is a high quality coconut shell activated carbon for the removal of dissolved organic contaminantsfrom water, wastewater and process liquids. The list of contaminants include taste and odor compounds, organic color, total organic carbon (TOC) and industrial chemicals such as chlorinated solvents (PCE, TCE).

AQUATROL™ MED-GCS Series Coconut Shell Granular Activated Carbon is produced under controlled conditions through high temperature steam activation. Its pore structure enables it to be used for adsorption of both high and low molecule weight impurities from water and diverse liquids. Especially effective for adsorbing trace organic compounds such as vinyl chloride, MTBE, methylene chloride and trihalomethanes/disinfection by-products.

APPLICATIONS

Water purification
Wastewater treatment
Industrial chemical purification.

PRODUCT SPECIFICATIONS

Flow Rate of Regenerate Solution: 17.6-26.4 gpm (4-6 m/hr)
lodine Number, mg/g: 1000 (min)
Ash, wt%: 4.0 (max)
Moisture (As Packaged), wt%: 5 (max)
Density (Apparent), g/cc: 0.48 (min)
Hardness Number: 95 (min)
12 US Mesh [1.70 mm], wt%: 5 (max)
< 40 US Mesh [0.425 mm] (PAN), wt%: 4 (max)

DATA SHEETS

MED-GCS SERIES SPECIFICATIONS

Part Number	Description	Bag
MED-GCS-830	Aquatrol™ Coconut Shell Activated Carbon, 8 x 30	1 cu.ft.

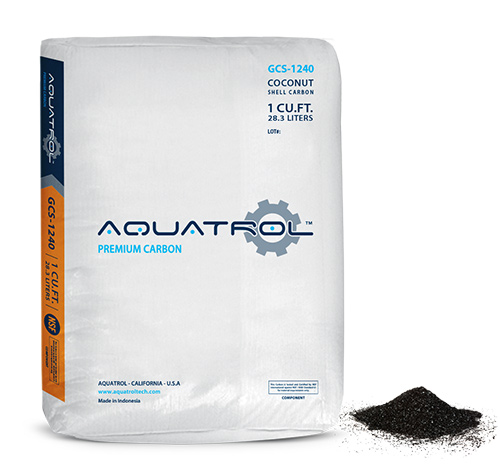

MED-GCS-1240	Aquatrol™ Coconut Shell Activated Carbon, 12 x 40	1 cu.ft.

*For the complete list of our NSF Certified products, please visit the Hydronix Water Technology page on the official NSF website: www.nsf.org
