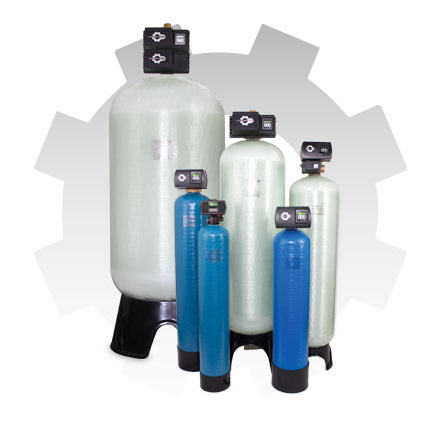

Katalox Light™ Filtration Systems
Filter Media: Katalox Light™
Filtration Factor: 4 – 8 gpm/ft²
Backwash Factor: 10 – 12 gpm/ft²
Size: 0.6 – 1.4 mm
Mesh: 14 x 30
NSF: Standard 61
Density: 66 lbs/ft³
| Part Number | Valve | Tank Size | Katalox Light (ft³) |
| FS-IRON-56FT-SE-0844 | AQT-56SE-FT | 8" x 44" | 0.75 |
| FS-IRON-56FT-0948 | AQT-56SE-FT | 9" x 48" | 1 |
| FS-IRON-56FT-1054 | AQT-56SE-FT | 10" x 54" | 1.5 |
| FS-IRON-275FT-NX-1252 | AQT-275F-NX | 12" x 52" | 2 |
| FS-IRON-275FT-NX-1354 | AQT-275F-NX | 13" x 54" | 2.5 |
| FS-IRON-275FT-NX-1465 | AQT-275F-NX | 14" x 65" | 3 |
| FS-IRON-275FT-NX-1665 | AQT-275F-NX | 16" x 65" | 4 |
| FS-IRON-275FT-NX-1865 | AQT-275F-NX | 18" x 65" | 5 |
| FS-IRON-285FT-NX-1465 | AQT-285F-NX | 14" x 65" | 3 |
| FS-IRON-285FT-NX-1665 | AQT-285F-NX | 16" x 65" | 4 |
| FS-IRON-285FT-NX-1865 | AQT-285F-NX | 18" x 65" | 5 |
| FS-IRON-285FT-NX-2162 | AQT-285F-NX | 21" x 65" | 7 |
| FS-IRON-285FT-NX-2472 | AQT-285F-NX | 24" x 72" | 10 |
| FS-IRON-290FT-NX-1465 | AQT-290F-NX | 14" x 65" | 3 |
| FS-IRON-290FT-NX-1665 | AQT-290F-NX | 16" x 65" | 4 |
| FS-IRON-290FT-NX-1865 | AQT-290F-NX | 18" x 65" | 5 |
| FS-IRON-315FT-NX-2162 | AQT-315F-NX | 21" x 62" | 7 |
| FS-IRON-315FT-NX-2472 | AQT-315F-NX | 24" x 72" | 10 |
| FS-IRON-315FT-NX-3072 | AQT-315F-NX | 30" x 72" | 15 |
| FS-IRON-315FT-NX-3672 | AQT-315F-NX | 36" x 72" | 20 |
| FS-IRON-315FT-NX-4272 | AQT-315F-NX | 42" x 72" | 30 |
| FS-IRON-390FT-NX-3672 | AQT-390F-NX | 36" x 72" | 20 |
| FS-IRON-390FT-NX-4272 | AQT-390F-NX | 42" x 72" | 30 |
| FS-IRON-390FT-NX-4872 | AQT-390F-NX | 48" x 72" | 40 |
| FS-IRON-580FT-XT-1252 | AQT-580F-NX | 12" x 52" | 2 |
| FS-IRON-580FT-XT-1354 | AQT-580F-NX | 13" x 54" | 2.5 |
| FS-IRON-580FT-XT-1465 | AQT-580F-NX | 14" x 65" | 3 |
| FS-IRON-580FT-XT-1665 | AQT-580F-NX | 16" x 65" | 4 |
| FS-IRON-581FT-XT-1465 | AQT-581F-NX | 14" x 65" | 3 |
| FS-IRON-581FT-XT-1665 | AQT-581F-NX | 16" x 65" | 4 |
| FS-IRON-581FT-XT-1865 | AQT-581F-NX | 18" x 65" | 5 |
| FS-IRON-581FT-XT-2172 | AQT-581F-NX | 21" x 62" | 7 |
| FS-IRON-581FT-XT-2472 | AQT-581F-NX | 24" x 72" | 10 |
| Valves | Inlet | Drain | Distributor | Voltage | Max Pressure | Temperature ºF |
| AQT-56FT | 3/4" - 1" | 1/2" | 1.05"OD (3/4"CED 40) | 24V/60Hz | 120 psi | 34-113 |
| AQT-275FT | 1" | 3/4" | 1.05"OD (3/4"CED 40) | 24V/60Hz | 120 psi | 34-113 |
| AQT-285FT | 1.5" | 1" | 1.96"OD (1.5"CED 40) | 24V/60Hz | 120 psi | 34-113 |
| AQT-290FT | 2" | 3/4" | 1.96"OD (1.5"CED 40) | 24V/60Hz | 120 psi | 34-113 |
| AQT-315FT | 2" | 2" | 2.49"OD (2"CED 40) | 24V/60Hz | 120 psi | 34-113 |
| AQT-390FT | 3" | 2" | 3.5"OD (3"CED 40) | 24V/60Hz | 120 psi | 34-113 |
Important Note. The Katalox LightTM flow rates and characteristics are values provided by the filter media manufacturer in its data sheet. The calculations of minimum and maximum flow rates are based on this information. For the removal of Iron, Manganese and Sulfides, anion and cation analysis is recommended. For waters with special characteristics or special amounts of suspended solids, COD or BOD, laboratory tests are recommended to check the performance of the filter media, contact your supplier for more information. DLFCs must be verified by the customer and/or installer to verify that they meet their engineering needs. Aquatrol provides this data for informational purposes only and is not responsible for misuse or selection of internal parts.
