AQT-390-NXMETER

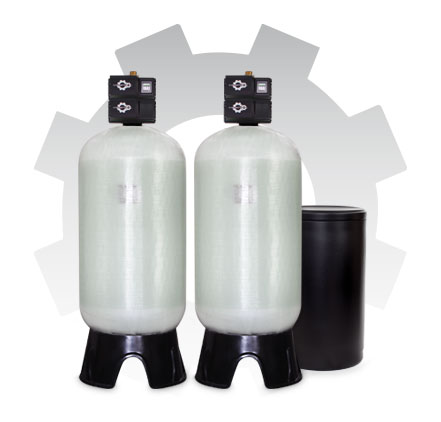

Aquatrol™ System 7 Alternating Duplex Softeners
Aquatrol™ Pressure Tanks offer a reliable and cost-effective alternative for all of your light residential to heavy-duty commercial applications. Aquatrol tanks are available in a variety of sizes ranging from 0713 to 6383 and all tanks are NSF/ANSI Standard 61 certified. Aquatrol proudly offers a 10 year warranty on tanks from 6″ – 13″ (5-year warranty on all tanks from 14″ – 63″).
Aquatrol Pressure Tanks provide outstanding performance and durability characteristics while giving you exceptional cost saving benefits. With Aquatrol there really is no need to go with a higher priced alternative.
For more information, contact your supplier. BLFC, DLFC, injectors, controls, pistons and other internal parts have to be checked by the customer and/or installer to verify that they meet your engineering needs. For pistons for different applications consult with your supplier. Aquatrol provides this data for information only and is not responsible for misuse or mis-selection of internal parts by the customer and/or installer. Capacities have been calculated based on a capacity of 32,000 grains per cubic foot. It is the responsibility of the customer engineer and/or installer to verify if this capacity is the most convenient or to use some protection factor.
Valve: AQT-390S-NX
Meter: AQT-390-NXMETER
Max. Flow Service: 325 gpm
Max. Flow Backwash: 100 gpm
Resin: MED-CAT100E
Diffuser: Aquatrol
Diffuser Inlet: 3.5″ OD (3′ SCH 40)
Control: AQT-NX
Drain: 2″
Brine Injection Valve: 1″
Brine Line: 1″
Valve Base: 6″ Flange
• 3″ Valve
• NHWB Piston
• Alternating System
• Adjustable Regeneration Cycles
• Remote Regeneration
• Auxiliary Relay
• Dosing Pump Output
• Diagnostic Mode
• Aquatrol Fiberglass Tanks
• 10-Year Warranty on 6″ – 13″ Tanks
• 5-Year Warranty on 14″ – 63″ Tanks
• Ready to Work Resin
• Easy Upgrade to Other AQT-NX Systems
| Park Number | Tank Size | Total Resin | Brine Tank | Total Capacity | Injector |
| SS7-390-NXNH-3672 | 36" x 72" | 40 | 42" x 50" | 1,280,000 | 6 |
| SS7-390-NXNH-4272 | 42" x 72" | 60 | 50" x 60" | 1,920,000 | 7 |
| SS7-390-NXNH-4872 | 48" x 72" | 80 | 50" x 60" | 2,560,000 | 8 |
Important note: Service (gpm) based on a flow rate of 5 gpm/ft3 of resin. For AQT-275, AQT-285 and AQT-315 valves, the use of a NA solenoid valve, 24V 50/60Hz, 0.25A max. is required. Refer to the NX control manual. Be sure to always use valves with NH (No Hard Water Bypass) pistons. System 7 uses 1 flow meter depending on the model of valves to be used. Ask your distributor for more information.
| Park Number | Tank Size | Total Resin | Brine Tank | Total Capacity | Injector |
| SS7-390-NXNH-3672 | 36" x 72" | 40 | 42" x 50" | 1,280,000 | 6 |
| SS7-390-NXNH-4272 | 42" x 72" | 60 | 50" x 60" | 1,920,000 | 7 |
| SS7-390-NXNH-4872 | 48" x 72" | 80 | 50" x 60" | 2,560,000 | 8 |
Important note: Service (gpm) based on a flow rate of 5 gpm/ft3 of resin. For AQT-275, AQT-285 and AQT-315 valves, the use of a NA solenoid valve, 24V 50/60Hz, 0.25A max. is required. Refer to the NX control manual. Be sure to always use valves with NH (No Hard Water Bypass) pistons. System 7 uses 1 flow meter depending on the model of valves to be used. Ask your distributor for more information.
