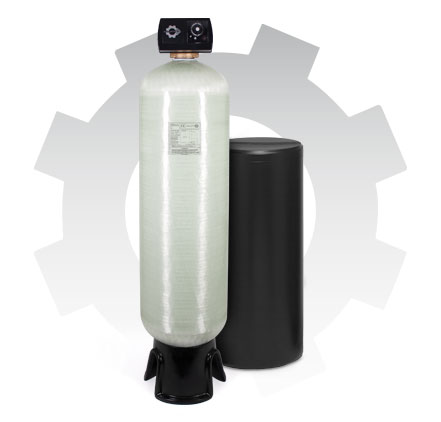

Aquatrol™ Softener Systems
For smaller systems with the AQT-285 valve, the 3/8” brine valve is required. For more information, contact your supplier. BLFC, DLFC, injectors, controls, pistons and other internal parts have to be checked by the customer and/or installer to verify that they meet your engineering needs. For pistons for different applications consult with your supplier. Aquatrol provides this data for information purposes only and is not responsible for misuse or mis-selection of internal parts by the customer and/or installer.
Valve: AQT-285ST
Max. Flow Service: 66 gpm
Max. Flow Backwash: 49 gpm
Resin: MED-CAT100E
Diffuser: Aquatrol
Diffuser Inlet: 1.96″ OD (1.5″ SCH 40)
Control: Time
Drain: 1″
Brine Injection Valve: 1/2″
Brine Line: 1/2″
Valve Base: 4″ 8UN
• 1.5″ Valve
• 12 Day Time Control
• 5 Adjustable Cycles
• For light Commercial Applications
• Easy Maintenance
• Aquatrol Fiberglass Tanks
• 10-Year Warranty on 6″ – 13″ Tanks
• 5-year Warranty on 14″ – 63″ Tanks
• 24V – 60Hz Electrical Connection
• Aquatrol Ready to Work Resin
• Original Aquatrol Spare Parts
| Part Number | Tank Size | Resin (ft³) | Brine Tank | Grain Capacity | Injector |
| SS-285ST-HW-1465 | 14" x 65" | 3 | 24" x 50" | 96,000 | 3C |
| SS-285ST-HW-1665 | 16" x 65" | 4 | 24" x 50" | 128,000 | 3C |
| SS-285ST-HW-1865 | 18" x 65" | 5 | 24" x 50" | 160,000 | 3C |
| SS-285ST-HW-2162 | 21" x 62" | 7 | 24" x 50" | 224,000 | 4C |
| SS-285ST-HW-2472 | 24" x 72" | 10 | 30" x 50" | 320,000 | 5C |
| SS-285ST-HW-3072 | 30" x 72" | 15 | 39" x 48" | 480,000 | 6C |
Capacities have been calculated based on a capacity of 32,000 grains per cubic foot. It is the responsibility of the customer, engineer and/or installer to verify if this capacity is the most suitable or to use a protection factor.
| Part Number | Tank Size | Resin (ft³) | Brine Tank | Grain Capacity | Injector |
| SS-285ST-HW-1465 | 14" x 65" | 3 | 24" x 50" | 96,000 | 3C |
| SS-285ST-HW-1665 | 16" x 65" | 4 | 24" x 50" | 128,000 | 3C |
| SS-285ST-HW-1865 | 18" x 65" | 5 | 24" x 50" | 160,000 | 3C |
| SS-285ST-HW-2162 | 21" x 62" | 7 | 24" x 50" | 224,000 | 4C |
| SS-285ST-HW-2472 | 24" x 72" | 10 | 30" x 50" | 320,000 | 5C |
| SS-285ST-HW-3072 | 30" x 72" | 15 | 39" x 48" | 480,000 | 6C |
Capacities have been calculated based on a capacity of 32,000 grains per cubic foot. It is the responsibility of the customer, engineer and/or installer to verify if this capacity is the most suitable or to use a protection factor.
