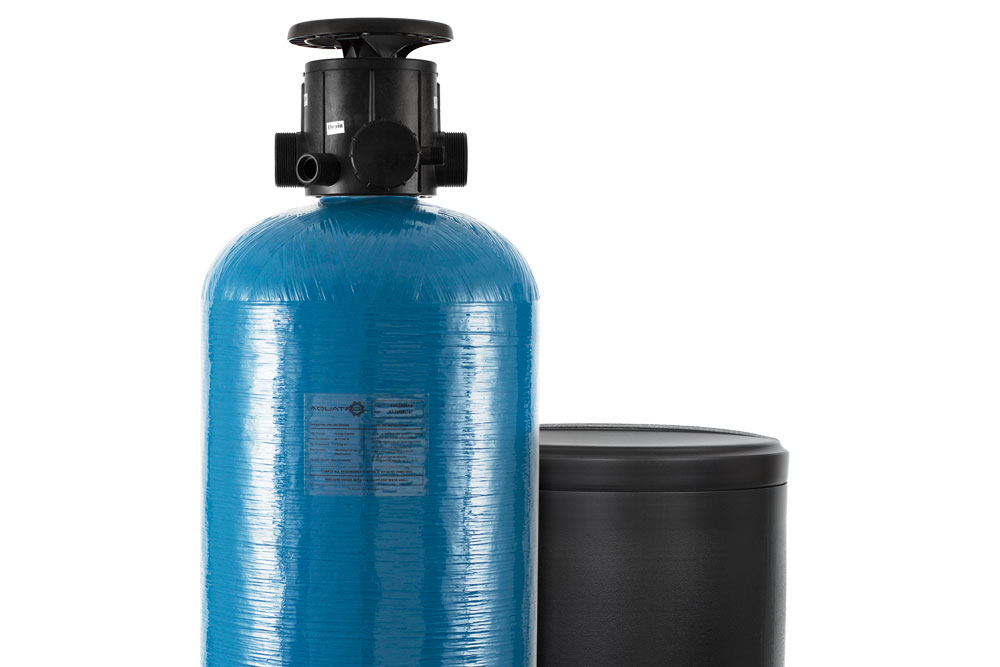

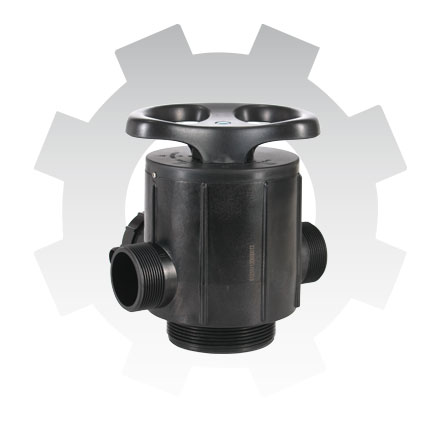

AQT-MSV-2

Manual Softener Systems

FEATURES & BENEFITS

Resin: MED-CAT100E
Service: 44 gpm
Backwash: 25.1 gpm
Connections: 2″
Drain: 11″
Base: 4″ 8 UN
Material: Noryl
Distributor: 1.96″ OD
Softeners: 14″ – 24″
Pressure: 14 – 87 psi
Temperature: 41 – 113ºF

MANUAL FILTER SPECIFICATIONS

Part NumberValueFilter MediaTankVolume (ft³)Brine Tank
SS-MSV2-1465AQT-MSV-2Aquatrol Resin - MED-CAT100E14" x 65"3.0018" x 40"
SS-MSV2-1665AQT-MSV-2Aquatrol Resin - MED-CAT100E16" x 65"4.0018" x 40"
SS-MSV2-1865AQT-MSV-2Aquatrol Resin - MED-CAT100E18" x 65"5.0024" x 50"
SS-MSV2-2162AQT-MSV-2Aquatrol Resin - MED-CAT100E21" x 62"7.0024" x 50"
SS-MSV2-2472AQT-MSV-2Aquatrol Resin - MED-CAT100E24" x 72"10.0030" x 50"

MANUAL FILTERS SPECIFICATIONS

Part NumberValueFilter MediaTankVolume (ft³)Brine Tank
SS-MSV2-1465AQT-MSV-2Aquatrol Resin - MED-CAT100E14" x 65"3.0018" x 40"
SS-MSV2-1665AQT-MSV-2Aquatrol Resin - MED-CAT100E16" x 65"4.0018" x 40"
SS-MSV2-1865AQT-MSV-2Aquatrol Resin - MED-CAT100E18" x 65"5.0024" x 50"
SS-MSV2-2162AQT-MSV-2Aquatrol Resin - MED-CAT100E21" x 62"7.0024" x 50"
SS-MSV2-2472AQT-MSV-2Aquatrol Resin - MED-CAT100E24" x 72"10.0030" x 50"
