A-95020

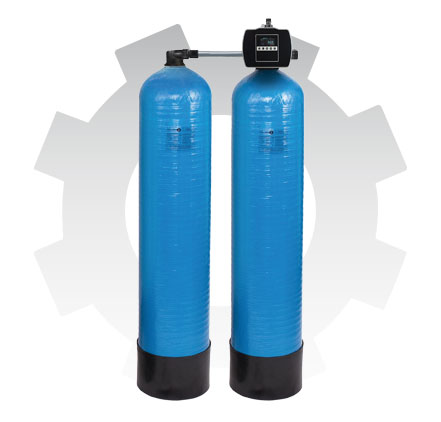

Aquatrol™ Twin Alternating Softeners
Aquatrol AQT-950XT Twin series control valves offer a rigid valve body made from Noryl material for superior quality and durability. AQT-950XT with their diverse options and added security features allow for ease of use, while offering value added options to fit a wide range of applications. AQT-950XT valves are easy to maintain with multiple quick connect connectors, easy access to injectors and simplified programming. They can be used on softener tanks up to 30″.
Aquatrol™ Pressure Tanks offer a reliable and cost-effective alternative for all of your light residential to heavy-duty commercial applications. Aquatrol tanks are available in a variety of sizes ranging from 0713 to 6383 and all tanks are NSF/ANSI Standard 61 certified. Aquatrol proudly offers a 10 year warranty on tanks from 6″ – 13″ (5-year warranty on all tanks from 14″ – 63″).
Aquatrol Pressure Tanks provide outstanding performance and durability characteristics while giving you exceptional cost saving benefits. With Aquatrol there really is no need to go with a higher priced alternative.
For more information, contact your supplier. BLFC, DLFC, injectors, controls, pistons and other internal parts have to be checked by the customer and/or installer to verify that they meet your engineering needs. For pistons for different applications consult with your supplier. Aquatrol provides this data for information only and is not responsible for misuse or mis-selection of internal parts by the customer and/or installer. Capacities have been calculated based on a capacity of 32,000 grains per cubic foot. It is the responsibility of the customer engineer and/or installer to verify if this capacity is the most convenient or to use some protection factor.
Valve: AQT-950SM-XT
Meter: A-95020
Max. Flow Service: 53 gpm
Max. Flow Backwash: 25 gpm
Resin: MED-CAT100E
Diffuser: Aquatrol
Diffuser Inlet: 1.96” OD (1 1/2” SCH 40)
Control: XT
Drain: 1”
Brine Line: 1/2”
Valve Base: 4” 8UN
• 1.5” Valve
• Alternating System
• Adjustable Regeneration Cycles
• Aquatrol Fiberglass Tanks
• 5-Year Warranty on 14″ – 63″ Tanks
• Ready to Work Resin
| Part Number | Tank Size | Total Resin (ft³) | Total Capacity (grain) | Brine Tank | Injector |
| SS-950XT-1465B | 14" x 65" | 3 | 96,000 | 18" x 40" | 3, White |
| SS-950XT-1665B | 16" x 65" | 4 | 128,000 | 24" x 50" | 3, White |
| SS-950XT-1865B | 18" x 65" | 5 | 160,000 | 24" x 50" | 4, Green |
| SS-950XT-2172B | 21" x 72" | 7 | 224,000 | 24" x 50" | 4, Green |
| SS-950XT-2472B | 24" x 72" | 10 | 320,000 | 24" x 50" | 5, Blue |
| SS-950XT-3072B | 30" x 72" | 15 | 480,000 | 30" x 48" | 5, Blue |
Important Note: Refer to the DLFC and BLFC table to obtain part numbers for each system according to the valve model.
| Part Number | Tank Size | Total Resin (ft³) | Total Capacity (grain) | Brine Tank | Injector |
| SS-950XT-1465B | 14" x 65" | 3 | 96,000 | 18" x 40" | 3, White |
| SS-950XT-1665B | 16" x 65" | 4 | 128,000 | 24" x 50" | 3, White |
| SS-950XT-1865B | 18" x 65" | 5 | 160,000 | 24" x 50" | 4, Green |
| SS-950XT-2172B | 21" x 72" | 7 | 224,000 | 24" x 50" | 4, Green |
| SS-950XT-2472B | 24" x 72" | 10 | 320,000 | 24" x 50" | 5, Blue |
| SS-950XT-3072B | 30" x 72" | 15 | 480,000 | 30" x 48" | 5, Blue |
Important Note: Refer to the DLFC and BLFC table to obtain part numbers for each system according to the valve model.
