AQT-290-NXMETER

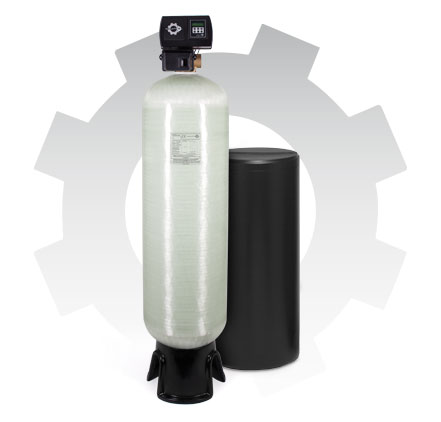

Aquatrol™ Digital Softener Systems
Aquatrol™ Pressure Tanks offer a reliable and cost-effective alternative for all of your light residential to heavy-duty commercial applications. Aquatrol tanks are available in a variety of sizes ranging from 0713 to 6383 and all tanks are NSF/ANSI Standard 61 certified. Aquatrol proudly offers a 10 year warranty on tanks from 6″ – 13″ (5-year warranty on all tanks from 14″ – 63″).
Aquatrol Pressure Tanks provide outstanding performance and durability characteristics while giving you exceptional cost saving benefits. With Aquatrol there really is no need to go with a higher priced alternative.
Valve with HWB (Hard Water Bypass) piston. If NHWB (No Hard Water Bypass) piston is required, please request information from supplier.
For more information, contact your supplier. BLFC, DLFC, injectors, controls, pistons and other internal parts have to be checked by the customer and/or installer to verify that they meet your engineering needs. For pistons for different applications consult with your supplier. Aquatrol provides this data for information only and is not responsible for misuse or mis-selection of internal parts by the customer and/or installer. Capacities have been calculated based on a capacity of 32,000 grains per cubic foot. It is the responsibility of the customer, engineer and/or installer to verify if this capacity is the most convenient or to use some protection factor.
Valve: AQT-290S-NX
Meter: AQT-290-NXMETER
Max. Flow Service: 140 gpm
Max. Flow Backwash: 25 gpm
Resin: MED-CAT100E
Diffuser: Aquatrol
Diffuser Inlet: 1.96″ OD (1 1/2″ SCH 40)
Control: AQT-NX
Drain: 3/4″
Brine Injector Valve: 1/2″
Brine Line: 1/2″
Valve Base: 4″ 8UN
• 2″ Valve
• Optional NHWB Piston
• Simple System (1 Valve Only)
• Adjustable Regeneration Cycles
• Remote Regeneration
• Auxiliary Relay
• Dosing Pump Output
• Diagnostic Mode
• Aquatrol Fiberglass Tanks
• 10-Year Warranty on 6″ – 13″ Tank
• 5-Year Warranty on 14″ – 63″ Tanks
• Aquatrol Ready to Work Resin
• Easy Upgrade to Other AQT-NX Systems
| Part Number | Tank Size | Resin (ft³) | Brine Tank | Grain Capacity | Injector |
|---|---|---|---|---|---|
| SS-290ST-NXHW-1465 SS-290SM-NXHW-1465 | 14" x 65" | 3 | 24" x 50" | 96,000 | 3C |
| SS-290ST-NXHW-1465 SS-290SM-NXHW-1465 | 16" x 65" | 4 | 24" x 50" | 128,000 | 3C |
| SS-290ST-NXHW-1465 SS-290SM-NXHW-1465 | 18" x 65" | 5 | 24" x 50" | 160,000 | 3C |
| SS-290ST-NXHW-1465 SS-290SM-NXHW-1465 | 21" x 62" | 7 | 24" x 50" | 224,000 | 4C |
| SS-290ST-NXHW-1465 SS-290SM-NXHW-1465 | 24" x 72" | 10 | 30" x 50" | 320,000 | 5C |
| SS-290ST-NXHW-1465 SS-290SM-NXHW-1465 | 30" x 72" | 15 | 39" x 48" | 480,000 | 6C |
| SS-290ST-NXHW-1465 SS-290SM-NXHW-1465 | 36" x 72" | 20 | 39" x 48" | 640,000 | 6C |
Capacities have been calculated based on a capacity of 32,000 grains per cubic foot. It is the responsibility of the customer, engineer and/or installer to verify if this capacity is the most suitable or to use a protection factor.
| Part Number | Tank Size | Resin (ft³) | Brine Tank | Grain Capacity | Injector |
|---|---|---|---|---|---|
| SS-290ST-NXHW-1465 SS-290SM-NXHW-1465 | 14" x 65" | 3 | 24" x 50" | 96,000 | 3C |
| SS-290ST-NXHW-1465 SS-290SM-NXHW-1465 | 16" x 65" | 4 | 24" x 50" | 128,000 | 3C |
| SS-290ST-NXHW-1465 SS-290SM-NXHW-1465 | 18" x 65" | 5 | 24" x 50" | 160,000 | 3C |
| SS-290ST-NXHW-1465 SS-290SM-NXHW-1465 | 21" x 62" | 7 | 24" x 50" | 224,000 | 4C |
| SS-290ST-NXHW-1465 SS-290SM-NXHW-1465 | 24" x 72" | 10 | 30" x 50" | 320,000 | 5C |
| SS-290ST-NXHW-1465 SS-290SM-NXHW-1465 | 30" x 72" | 15 | 39" x 48" | 480,000 | 6C |
| SS-290ST-NXHW-1465 SS-290SM-NXHW-1465 | 36" x 72" | 20 | 39" x 48" | 640,000 | 6C |
Capacities have been calculated based on a capacity of 32,000 grains per cubic foot. It is the responsibility of the customer, engineer and/or installer to verify if this capacity is the most suitable or to use a protection factor.
