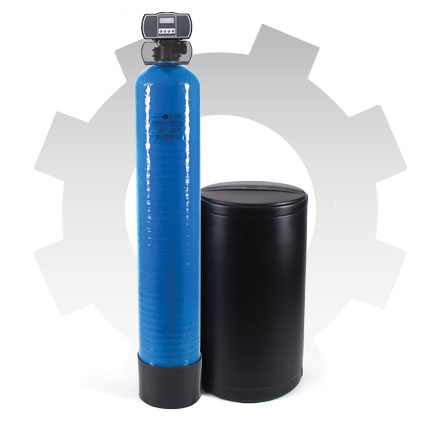

Aquatrol™ Softener Systems
The AQT-56 Series valves are one of the most reliable and competitive residential valves in the world. With their modern design and top quality materials, the AQT-56 & AQT-56SE have a continuous flow rate up to 20 gpm and can be used on any filter system with up to 10″ diameter tanks and any softener system with up to 14″ diameter tanks. The AQT-56 & AQT-56SE offer DLFC and BLFC options allowing the system designer a variety of options to best fit his/her needs. Timer, meter mechanical and electronic controllers are available for all your configurations.
For more information, contact your supplier. BLFC, DLFC and injectors have to be verified by the customer and/or installer to verify that they meet their engineering needs. Aquatrol provides this data for information purposes only and is not responsible for misuse or selection of internal parts.

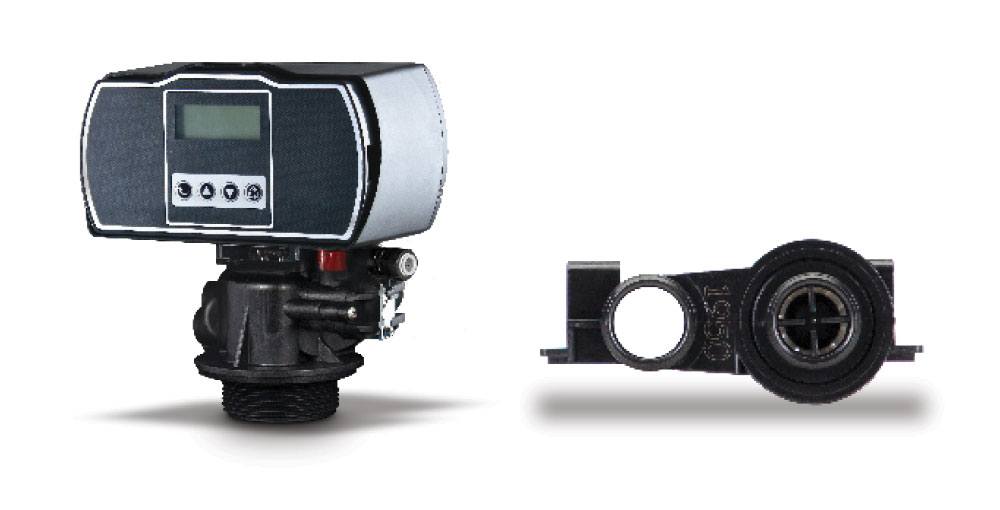

Valve: AQT-56SE-ST / AQT-56SE-SM
Meter: AQT-56 Electronic Turbine
Max. Flow Service: 26 gpm
Max. Flow Backwash: 7 gpm
Resin: MED-CAT100E
Diffuser: Aquatrol
Diffuser Inlet: 1.05″ OD (3/4″ SCH 40)
Control: Aquatrol SE
Drain: 1/2″ Quick Connect Elbow
Brine Line: 3/8″ Quick Connect
Valve Base: 2 1/2″ 8 NPSM
• 3/4″ Noryl Valve
• Optional 1″ Yoke
• SE Electronic Control
• Time Regeneration, Immediate Flow, Delayed Flow Modes
• Easy Maintenance
• Polycarbonate Lid
• Aquatrol Fiberglass Tanks
• 10-Year Warranty on 6″ – 13″ Tank
• 24V – 60Hz Transformer
• Aquatrol Ready to Work Resin
• Original Aquatrol Spare Parts
| Part Number | Tank Size | Resin (ft3) | Brine Tank | Grain Capacity | Injector |
| SS-56SEST-0844 SS-56SESM-0844 | 8" x 44" | 0.75 | 16" x 33" | 24,000 | 0 |
| SS-56SEST-0844 SS-56SESM-0844 | 9" x 48" | 1.00 | 16" x 33" | 32,000 | 1 |
| SS-56SEST-0844 SS-56SESM-0844 | 10" X 54" | 1.50 | 16" x 33" | 48,000 | 1 |
| SS-56SEST-0844 SS-56SESM-0844 | 12" x 52" | 1.75 | 16" x 33" | 56,000 | 2 |
| SS-56SEST-0844 SS-56SESM-0844 | 13" x 54" | 2.00 | 16" x 33" | 64,000 | 3 |
| SS-56SEST-0844 SS-56SESM-0844 | 14" x 65" | 2.25 | - | - | - |
Capacities have been calculated based on a capacity of 32,000 grains per cubic foot. It is the responsibility of the customer, engineer and/or installer to verify if this capacity is the most suitable or to use a protection factor.
| Part Number | Tank Size | Resin (ft3) | Brine Tank | Grain Capacity | Injector |
| SS-56SEST-0844 SS-56SESM-0844 | 8" x 44" | 0.75 | 16" x 33" | 24,000 | 0 |
| SS-56SEST-0844 SS-56SESM-0844 | 9" x 48" | 1.00 | 16" x 33" | 32,000 | 1 |
| SS-56SEST-0844 SS-56SESM-0844 | 10" X 54" | 1.50 | 16" x 33" | 48,000 | 1 |
| SS-56SEST-0844 SS-56SESM-0844 | 12" x 52" | 1.75 | 16" x 33" | 56,000 | 2 |
| SS-56SEST-0844 SS-56SESM-0844 | 13" x 54" | 2.00 | 16" x 33" | 64,000 | 3 |
| SS-56SEST-0844 SS-56SESM-0844 | 14" x 65" | 2.25 | - | - | - |
Capacities have been calculated based on a capacity of 32,000 grains per cubic foot. It is the responsibility of the customer, engineer and/or installer to verify if this capacity is the most suitable or to use a protection factor.
