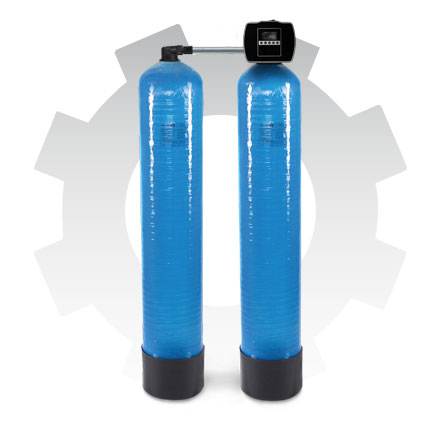

AQT-910SM-XT

Aquatrol Twin Alternating Softeners

STRENGTHS & BENEFITS

1″ Valve
Alternating System
Adjustable Regeneration Cycle
Aquatrol Fiberglass Tanks
10-Year Warranty On 6″ – 13″ Tanks
5-Year Warranty On 14″ – 63″ Tanks
Ready to Work Resin

FEATURES

Valve: AQT-910SM-XT Meter: A-91020 Max. Flow Service: 24 gpm Max. Flow Backwash: 9gm Resin: MED-CAT100E Diffuser: Aquatrol Diffuser Inlet: 1.05″ OD (3/4″ SCH 40) Control: XT Drain: 1/2″ Brine Line: 3/8″ Valve Base: 2.5″

AQT-910SM-XT SPECIFICATION TABLE

Part Number	Tank Size	Total Resin (ft³)	Brine Tank	Total Capacity (grains)	Injector
SS-910XT-0844A	8" x 44"	0.75	18" x 40"	24,000	0, red
SS-910XT-0948A	9" x 48"	1	18" x 40"	32,000	1, white
SS-910XT-1054A	10" x 54"	1.5	18" x 40"	48,000	1, white
SS-910XT-1252A	12" x 52"	1.75	18" x 40"	56,000	2, blue
SS-910XT-1354A	13" x 54"	2	18" x 40"	64,000	2, blue
SS-910XT-1465A	14" x 65"	3	18" x 40"	96,000	3, yellow
SS-910XT-1665A	16" x 65"	4	18" x 40"	128,000	3, yellow

*Model BT-2450-350 and larger

DATA SHEETS

AQT-910SM-XT SPECIFICATION TABLE

Part Number	Tank Size	Total Resin (ft³)	Brine Tank	Total Capacity (grains)	Injector
SS-910XT-0844A	8" x 44"	0.75	18" x 40"	24,000	0, red
SS-910XT-0948A	9" x 48"	1	18" x 40"	32,000	1, white
SS-910XT-1054A	10" x 54"	1.5	18" x 40"	48,000	1, white
SS-910XT-1252A	12" x 52"	1.75	18" x 40"	56,000	2, blue
SS-910XT-1354A	13" x 54"	2	18" x 40"	64,000	2, blue
SS-910XT-1465A	14" x 65"	3	18" x 40"	96,000	3, yellow
SS-910XT-1665A	16" x 65"	4	18" x 40"	128,000	3, yellow

*Model BT-2450-350 and larger
